The New Integrated Guava XX Stem and Handlebar
The XX bar and stem combo is a proprietary deisgn by Guava that hits all the points of a top carbon racing bar: the stiffness and ride quality of an integrated bar and stem; hand position in the hoods, drops, and tops developed together with our pro riders; 4 stem length and 2 bar width options; sensible cable routing; and, of course, it looks great!
Developed and tested over the course of a year, the XX bar system was launched to a 4th placed finish in the elite race at Traka 360. Manufactured in small production runs with high modulus Toray carbon fiber and with rigorous QC standards. We think this is the best gravel bar available on the market!

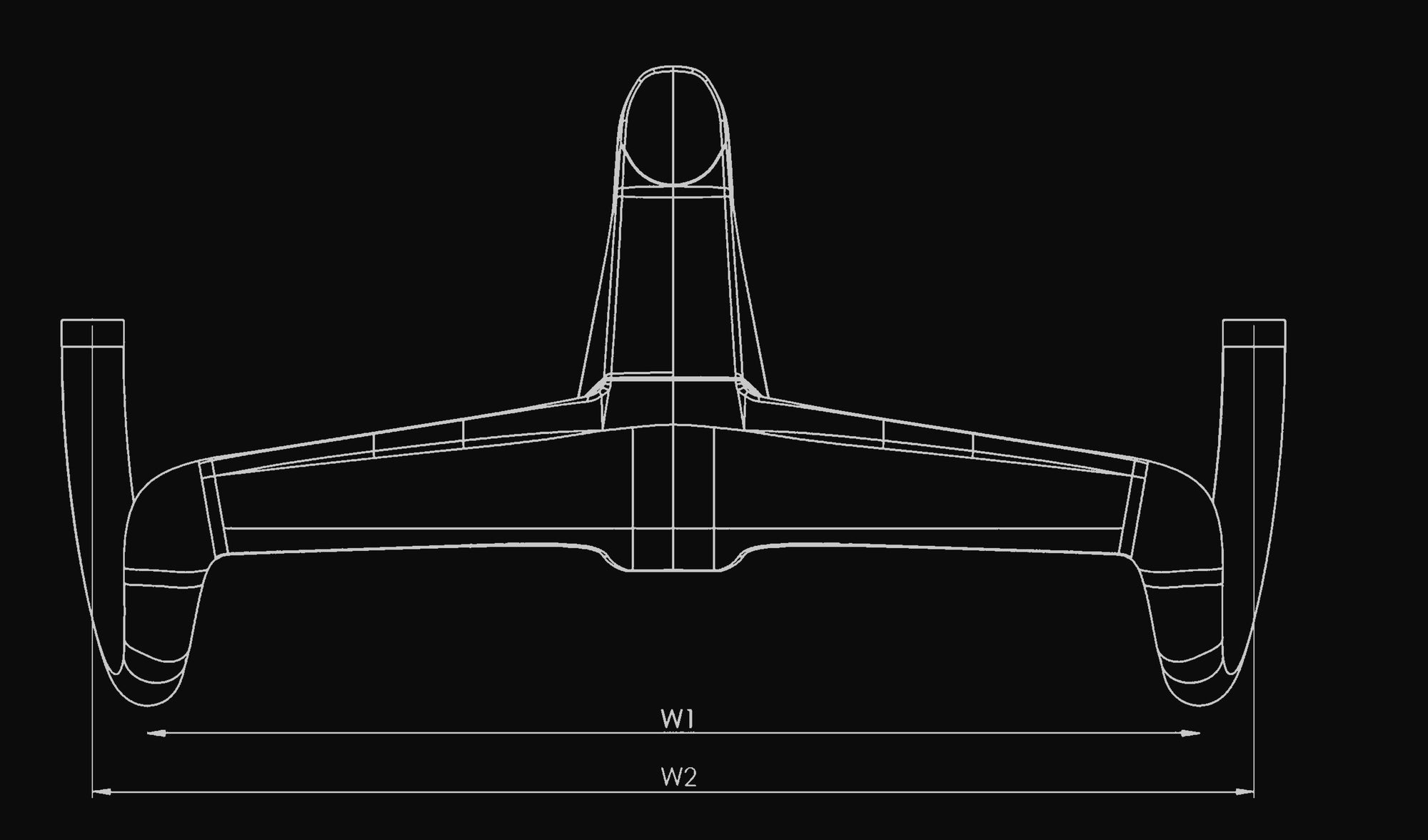

XX Handlebar Geometry
| Width | 400mm | 420mm |
|---|---|---|
| Width at drop (W2) | 442 | 462 |
| Drop | 105 | 105 |
| Reach | 77mm | 77mm |
| Backsweep | -4.6º | -4.6º |
| Flare | -15º | -15º |
| Rise | 0 | 0 |

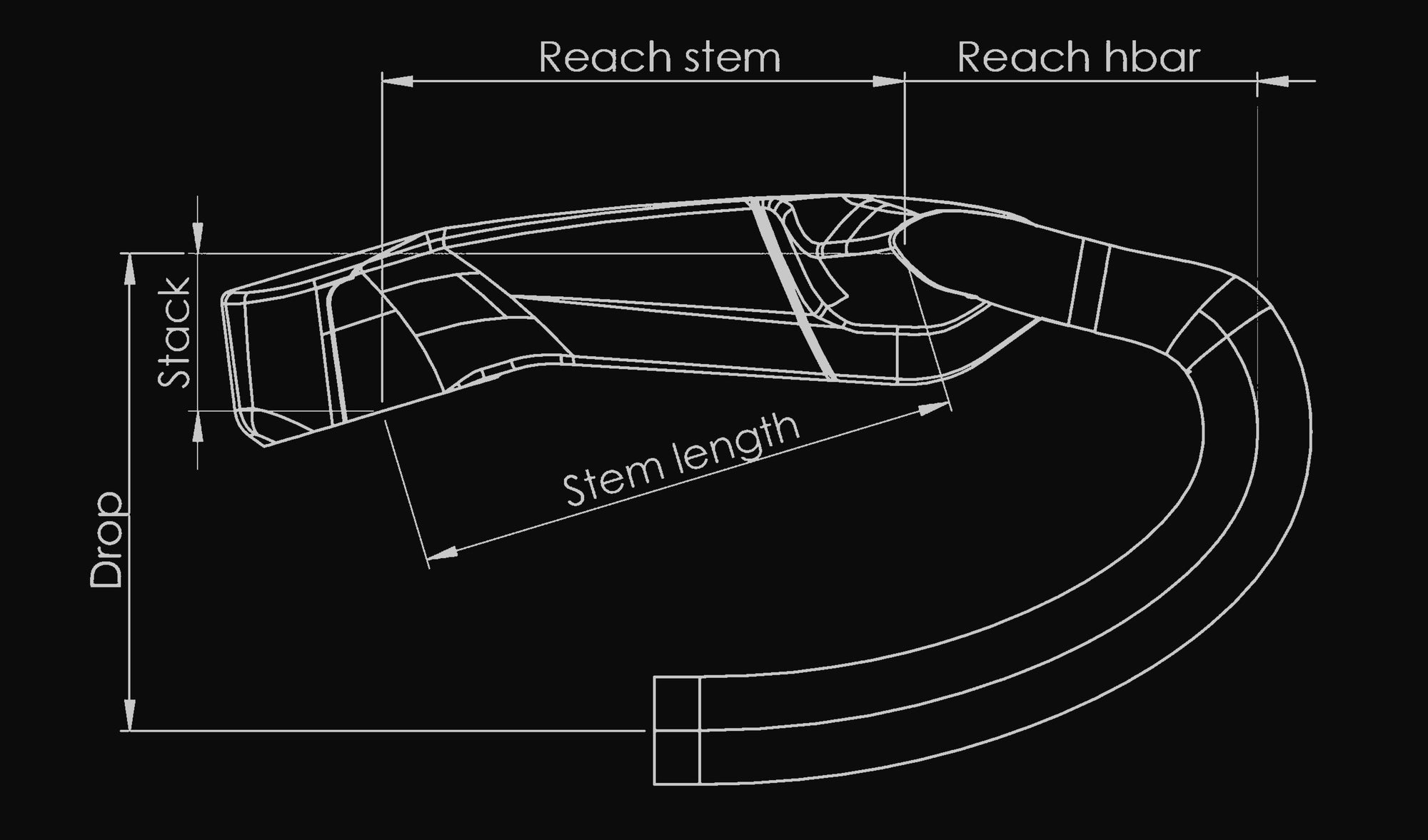

XX Stem Geometry
| Stem | 60 | 80 | 100 | 120 |
|---|---|---|---|---|
| Reach | 49,0 | 72,1 | 93,8 | 114,9 |
| Stack | 34,7 | 34,7 | 34,7 | 34,7 |
